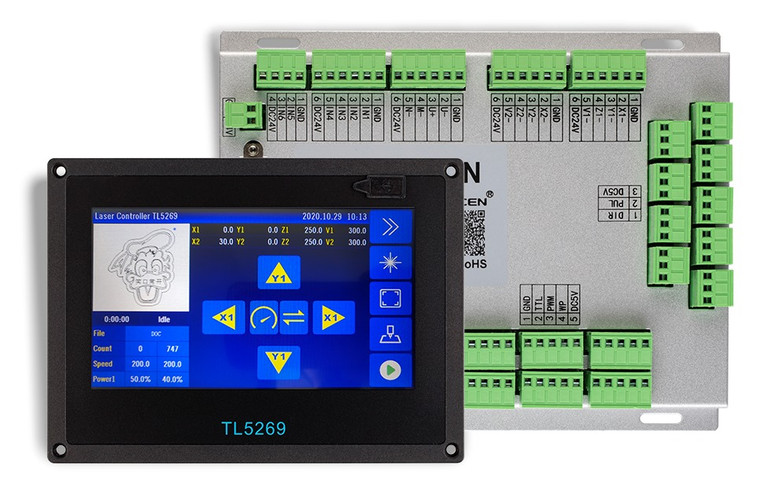

Trocen TL5269 Industrial CO₂ Laser Controller with CCD Vision Support

Advanced Laser Motion Control System for Industrial CO₂ Laser Cutting Machines

The Trocen TL5269 is an advanced industrial laser motion controller designed for CO₂ laser cutting applications requiring precision motion control, flexible machine configuration, and integration with CCD vision systems.

Unlike basic CO₂ laser controllers, the TL5269 is designed for more sophisticated machine applications, including automated cutting systems, conveyor-based laser machines, and specialized industrial equipment.

When integrated with the appropriate vision hardware and software, the system can support camera-assisted positioning and cutting workflows, making it particularly useful for textile, fabric, printed material, and other applications requiring accurate alignment.

Key Features

• Industrial CO₂ Laser Control: Designed for professional laser cutting equipment and automated production applications.

• CCD Vision Integration: Supports vision-assisted cutting applications when configured with compatible cameras, software, and hardware.

• Precision Motion Control: Suitable for industrial laser machines using compatible motion systems and servo drives.

• Conveyor Cutting Applications: Can be integrated into conveyor-based laser cutting equipment for continuous or automated material processing.

• Advanced Machine Configuration: Supports specialized machine designs and application-specific control requirements.

• Professional Control Software: Works with compatible Trocen software for laser cutting operations and system configuration.

Typical Applications

• Industrial CO₂ laser cutting machines

• Textile and fabric laser cutting

• Printed fabric and pattern alignment

• Conveyor-fed laser cutting systems

• CCD camera-assisted laser cutting

• Customized industrial laser equipment

• Replacement or upgrading of compatible Trocen-controlled machines

CCD Vision Cutting Applications

One of the most valuable capabilities of the TL5269 system is its integration with machine vision technology.

With a properly configured CCD vision system, the laser machine can use camera information to assist with material positioning, alignment, and cutting operations.

This is particularly beneficial for printed fabrics, patterned textiles, and other materials where cutting accuracy depends on the location of printed designs or reference features.

Vision functionality requires compatible cameras, software, lighting, and proper system calibration.

Technical Support from LightObject

LightObject has extensive experience with industrial CO₂ laser cutting equipment, motion control systems, laser optics, and machine troubleshooting.

Our technical services include:

• Laser controller installation and configuration assistance

• Laser firing and signal troubleshooting

• Servo and motion system troubleshooting

• Laser optical alignment

• CCD vision system setup and calibration assistance

• Industrial laser machine repair and technical consultation

Our field service experience includes troubleshooting a large industrial dual-gantry CO₂ laser cutting machine equipped with a Trocen TL5269 controller and vision system.

For professional repair assistance, please visit our Trocen TL5269 Repair & Technical Support page:

https://lightobject.com/repair-service/trocen-tl5269-repair-support/

Important Ordering Information

The TL5269 is an industrial controller intended for compatible laser cutting systems. Installation and configuration may require technical knowledge of laser control signals, servo drives, machine wiring, and motion parameters.

Please confirm compatibility with your existing equipment before ordering.

Package contents, compatible accessories, and software requirements should be verified before purchase.
