Product Description

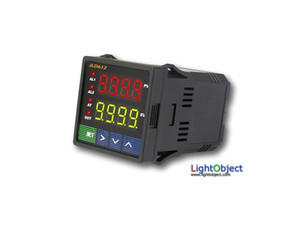

This is a low voltage DC version PID Temperature controller.
Key Features of the JLD612 Temperature Controller
- 3 modes of Auto-Turning with PID Algorithms
- Dual Display for Set temperature and present temperature
- Fahrenheit (F) and Celsius(C) -1999 ~ 9999
- Individually programmable PID control parameters
- 7 Different Dual Output
- Support 0.1degree resolution with pt-100 thermocouple
Specification
- Power:DC 12V~32V
- Two display: Set temp and current
- Dual output SSR(5~8V, 40mA), Relay(3A 120V AC)
- Multiple sensor: T,R,J,B,S,K,E,Wre3 ~ Wre25 , PT100, Cu50
- Accuracy: 0.2%
- Dimension: DIN: 1/16 (48mmX48mmX82mm)
- Warranty: 6 months
Manual is on Forum.
(Note: Thermocouple is not included. You may need a SSR for heating element over 3A or 300Watt)
What is a PID? Click Here
