2:1 X axis reduction gear for DIY CO2 laser machine

2:1 X axis reduction gear for DIY CO2 laser machine

SKU:
LSR-X21RGEAR
$29.50
(No reviews yet)
Width:
2.00 (in)
Height:
3.00 (in)
Depth:
3.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

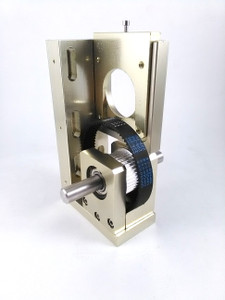

2:1 Reduction Gear block for X-axis. This X-axis belt driven gear block is designed for CO2 Laser Machines. It is a heavy-duty built and it is ready for use with a Nema 23 (57 series) stepping motors.


Specification

  • Ratio: 2 to 1
  • Gear 1: 18.2mm dia., 20 teeth, width:16.4mm
  • Belt size: 3M15
  • Gear 2: 35.6mm dia., 40 teeth, width: 10.3mm
  • Belt size:3M9
  • Motor fit: Nema 23 (57 series)
  • Materials: Aluminum & stainless steel shaft
  • Holes Pattern: Rectangular ; 16mmx26mm
