Triple 3x chuck fiber laser metal pipe cutter

Industrial, professional three clams/chuck metal pipe cutter

Features:
-Laser power: 2000W-12Kw
-Pipe: 20ft, 9.4"max, 3/4" min
-Pneumatic square clamp/ chuck
-Semi-enclosed system
-Square opening for max square pipe

Specifications:
Three Clams/chucks Tube Fiber Laser cutting machine with 6meter Φ240 ( tailing≤
80mm/Variable wheel support)
- Laser source: 2000W~ 12Kw
- Working Area: 6m*Φ240mm
- System: Cypcut system
- Cutting head: Auto focus cutting head
- LEADRACK/YYC/Apex gear rack, WON/Hiwin guide rail, MOTOREDUCER/EREFAT
Reducer, INOVANCE/Panasonic/Schneider motor and driver
- Laser Specialized Water Chiller
- Power: 380V/60Hz (transformer included)

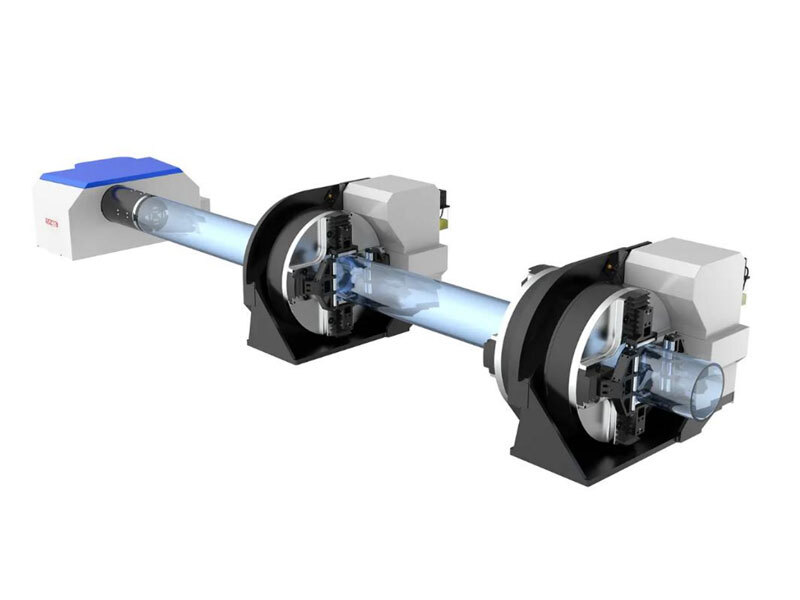

It achieves zero waste, high rotation speed, and high precision. The third chuck/clamp is a double-sided chuck with a single-sided clamping mechanism and a single-sided roller mechanism. This design provides flexibility, improves material utilization, and saves costs.

Details:
Standard
Round tube: Φ15mm-Φ240mm (5/8" - 9.4")
Square tube: 15*15mm-240*240mm (5/8"x5/8" ~ 9"x9")
Rectangular tube: 30*20mm-240*240mm(9.4*9.4")
Oval tube: shorter axis≥15mm(5/8")，longer axis≤240mm or 9.4"
Max single tube loading weight: 400Kg or 880lbs

Beam
U-steel: 5#~20#
Angle Beam: 3# ~ 10#
H Beam: 10# ~ 24#
