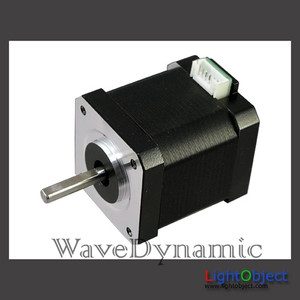

NEMA 17 42HS02 Stepper motor

NEMA 17 42HS02 Stepper motor

SKU:
EMOT-42HS02
$15.95
(No reviews yet)
Width:
2.00 (in)
Height:
2.00 (in)
Depth:
3.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

NEMA 17 Motor:

Specification:

pigtail included(not shown)

  • Step angle: 1.8 deg
  • Step per revolution: 200
  • Phases: 2
  • Single shaft, 5mm
  • No. wires: 4 or 6 center tag
  • Current: 1.8A
  • Holding Torque:0.36 N.M (50oz*in)
  • Inductance: 2.6 mH
  • Phase resistance: 1.3 ohms
  • Detente torque: 150 gcm
  • Rotor Inertia: 57 g-cm2
  • Weight: 0.24KG (0.5lb)
  • Motor body size: 42mm x 42mm x 40mm



Connection: Yellow color wire and Orange color wire is a pair

                     Red color wire and Brown color wire is a pair

                      Wire color code may vary. You are always recommended to use multimeter to check continuity to confirm the right pair of wires.
