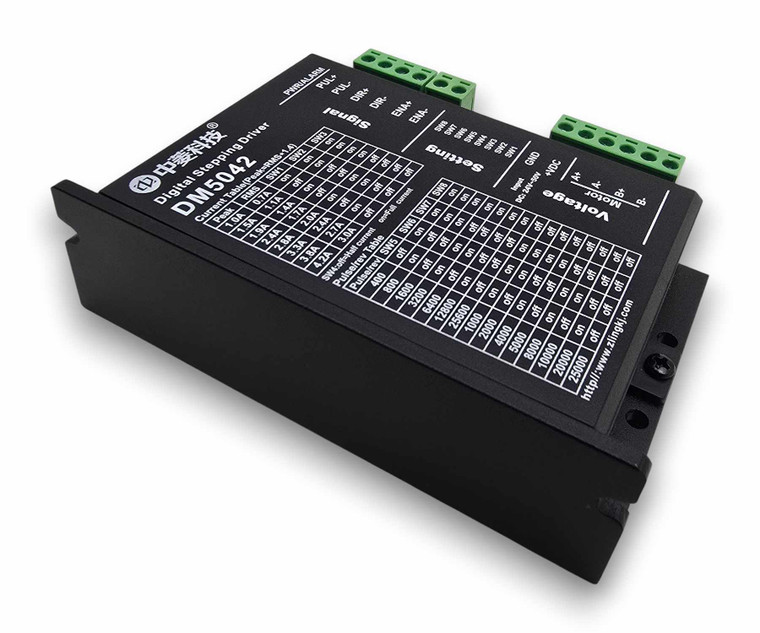

2 Phase 4.2A 1-Axis Stepping Motor Driver
$29.50
(No reviews yet)
Write a Review
2 Phase 4.2A 1-Axis Stepping Motor Driver
2-Phase Stepping Motor Driver. Ideal for CNC and Laser machines. High Current, quality made, low noise, and affordable.
This controller was designed by ex-Leetro engineers.
Features
- 20 to 50V DC Supply Voltage
- H-Bridge, 2 Phase Bi-polar Micro-Stepping Drive
- Ideal for 2-phase, 4,6, and 8 leads step motors with Nema size 16 to 34
- 50% current mode
- Frequency Input support up to 200KHz
- Up to 25,000 steps resolution
Specifications
- Current: Min 1.0A, Max 4.2A
- Voltage: Min 20V Typical: 36V Max: 50V DC
- Logic current: Min 7mA Typical: 10mA Max: 16mA
- Input frequency: up to 200KHz
