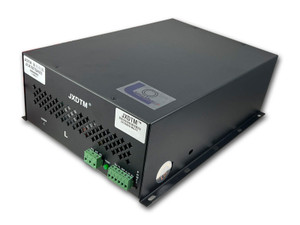

Negative 100W~180W PWM CO2 Laser Power Supply
LightObject
$225.00
$395.00
(You save
$170.00
)
This is a negative voltage power supply ideal for 100~180W Co2 Laser tube. It is design primarly as replacement power supplies for our 200W GSI laser power supply, however it can be used on a regular 100W, 130W, and 150W laser tube.
Note: If you connect this laser power supply to a regular laser tube, and your machine is equipped with a milliAmp meter you will need to switch the connection flow. If you don't the reading will be in reverse.
It comes with built-in PWM control and analog power control. The negative circuitry design is applicable for lasertubes that need a reverse connection voltage.
Key Features
- TTL control
- Stable output
Disclaimer: High-voltage quick connect is not included for this power supply. Please give us a call for more information. The high voltage cable is about 5ft long.
Specifications
- Input: AC110V(default) 50/60Hz ; AC 220V when requested.
- Power: 100W~180Watt
- Triggering Voltage: 31KV
- Operating Voltage: 22kV~25kV
- Current: 35mA Max.
- Dimension: 12.4" x 7.7" x 4.02" (315mm x 195mm x 102mm)
- Weight: 9.7 lbs
- 3pin terminal pinout: G, AC, AC
- 6pin terminal pinout: High, Low, WaterP, Gnd, IN, 5V
Please see forum for more info about pinout and red test button.
Warranty
12 months limited warranty
Related Products
-
-
-
-
Out of stock
Reviews
-
Excellent upgrade to my W6 tube
Bought a new Chinese laser and after getting things dialed in I was having issues with the laser running at lower power levels, think around 20% or ~5ma. The power would fade in and out over an engraving session. After replacing the power supply with this, it works perfectly. The swap was super easy as well, and as a plus I was able to switch over to 220v finally!
