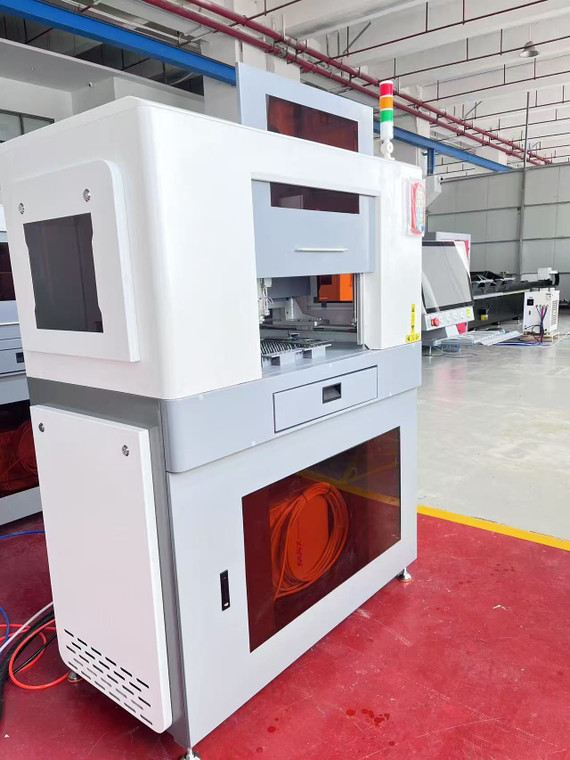

Hummingbird Fiber Laser for Gold/ Silver/ Brass cutting

Hummingbird Fiber Laser for Gold/ Silver/ Brass cutting

LightObject
SKU:
LSR_HBIRD
Availability:
Contact us for details

GET A QUOTE BY EMAIL OR CALLING US.

(No reviews yet)
Width:
52.00 (in)
Height:
88.00 (in)
Depth:
73.00 (in)
Current Stock:
Description

LighObject's Hummingbird is an ideal laser system for jewellery shop for making products from gold, silver, or brass.The slim design (29.5") enclosed system allow it to pass through most door in a building.

The workable area of the Hummingbird 300mm x 300mm or close to 12" x 12".

A 1500W high power laser source cut up to 12mm or 1/2" steel. This machine is designed with ball-screw to obtain higher precision, and it ensure that space constraints aren’t an issue in your manufacturing environment. With the ability to cut up to 5mm stainless steel using the fiber laser, the Hummingbird 1500 doesn’t sacrifice any quality to achieve the compact design.



Features:

  • Compact design with powerful cutting performance

  • High-precision ball screw and rack drive

  • Professional RT controller & software



 Specification:

  • Laser power:  1500W default, upgrade-able to 2000W
  • Laser head:  Auto tracking & manual focus setting. Up-gradable to auto-focus laser head
  • Work area: 300mm x 300mm (11.8" x 11.8")
  • Metal cutting capability:  Gold, silver, carbon steel, stainless steel, aluminum, & brass
  • Gas assisted: O2, N2, and Air
  • Cooling: High performance water chiller (included)
  • Power: Single-phase AC208V,  50Hz/60Hz, 30Amp
  • Motor: X & dual Y 500w Servo Motor
  • Raytools controller and software
  • Transmission way: Y-axis & X-axis with ball-screw
  • Dimensions (WxDxH): 29.5" x 71" x 78" (not include control panel)
  • Weight: 1500lbs ±200lbs



Cutting Power

With 1500W (default) laser power:

  • Carbon steel: 12mm or 1/2"
  • Stainless steel: 5mm or 3/16"
  • Aluminum: 3mm or 1/8"
  • Brass: 2mm or 3/32"
  • Gold: 1.8mm or 1/16"
  • Silver: 1.8mm or 1/16"



With 2000W laser power:

  • Carbon steel: 15mm or 5/8"
  • Stainless steel: 6mm or 1/4"
  • Aluminum: 4mm or 3/16"
  • Brass: 3mm or 1/8"
  • Gold:  2.5mm or 3/32"
  • Silver: 2.5mm or 3/32"





Extra

  • Warranty: 2 year on parts, 1 year on laser source , 1 year on labor
  • United States Support Team
  • Free 1 day training in our facility. Optional on-site training is available with fee
  • Optional extended warranty and service contract available for an additional cost

The customer is responsible for unloading equipment such as a forklift. Traveling expense is not included for on-site service. Up to one replacement of laser source is available within warranty period.

Contact us for more information.





Demo (1.5mm Stainless Steel):

Additional Information
Working area (x, y, z):
12" x 12" x 4"
Dimension:
29.5" x 78" x71" +/- 0.5" (not include control panel)
Z-table:
Cutting Head moving in Z direction
Power:
1500W
Supported file format:
DXF, PLT, CDR, AI, G-Code
