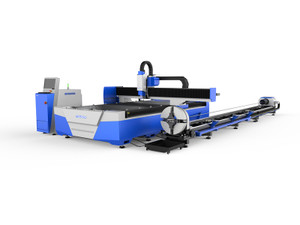

Double chuck fiber laser metal pipe cutter

Double chuck fiber laser metal pipe cutter

SKU:
LSR-V24XS

Contact us at (916) 383-8166

(No reviews yet)
Current Stock:
Description

Industrial, professional metal pipe cutter with 3000W fiber laser

Features:
-Laser power: 2000W-12Kw
-Pipe: 20ft, 9.4"max, 3/4" min
-Pneumatic clamp/ chuck
-Semi-enclosed system



Specifications:
Two Clams/chucks Tube Fiber Laser cutting machine with 6meter Φ240 ( tailing≤
80mm/Variable wheel support)
- Laser source: 2000W~ 12Kw
- Working Area: 6m*Φ240
- System: Cypcut system
- Cutting head: Auto focus cutting head
- LEADRACK/YYC/Apex gear rack, WON/Hiwin guide rail, MOTOREDUCER/EREFAT
Reducer, INOVANCE/Panasonic/Schneider motor and driver
- Laser Specialized Water Chiller
- Power: 380V/60Hz (transformer included)



Details:
Standard
Round tube: Φ15mm-Φ240mm (5/8" - 9")
Square tube: 15*15mm-169*169mm (5/8"*5/8" ~ 6.6"*6.6")
Rectangular tube: 30*20mm-160*80mm (diagonal≤240mm or 9.2")
Oval tube: shorter axis≥15mm(5/8")，longer axis≤210mm or 9.2"
Max single tube loading weight: 400Kg or 880lbs



Beam
U-steel: 5#~20#
Angle Beam: 3# ~ 10#
H Beam: 10# ~ 24#
